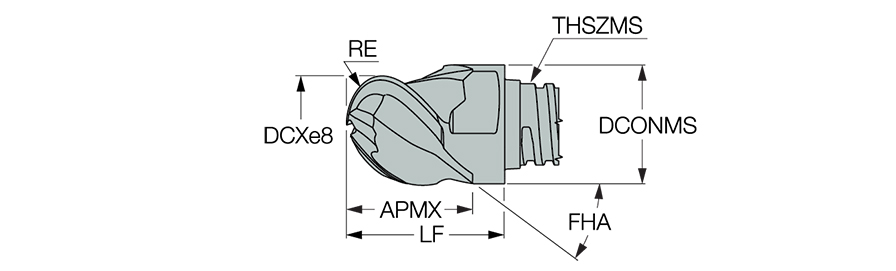

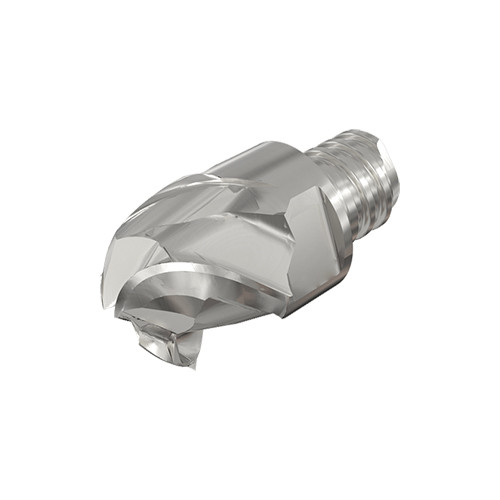

MM EBA.375H27-3T06 IC08
| Application | | Profiling | | Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Overall Length (OAL) | 0.774″ |
| Flute Count (NOF) | 3 | Grade | IC08 |
| Corner Radius (RE) | 3/16″ | Coating | Uncoated |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 3/8″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.29″ | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.378″ | Body Material | Carbide |
| Functional Length (LF) | 0.512″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | Interchangeable 3 flute high precision solid carbide ball nose heads for machining aluminum | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
18.5
