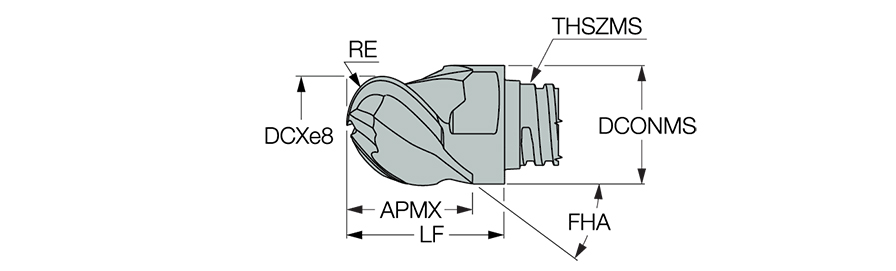

MM EBA080H05-3T05 IC08
| Application | | Profiling | | Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Overall Length (OAL) | 17.1 mm |
| Flute Count (NOF) | 3 | Grade | IC08 |
| Corner Radius (RE) | 3.98 mm | Coating | Uncoated |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 8 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 5.5 mm | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 7.7 mm | Body Material | Carbide |
| Functional Length (LF) | 10 mm | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | Interchangeable 3 flute high precision solid carbide ball nose heads for machining aluminum | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
13.5
