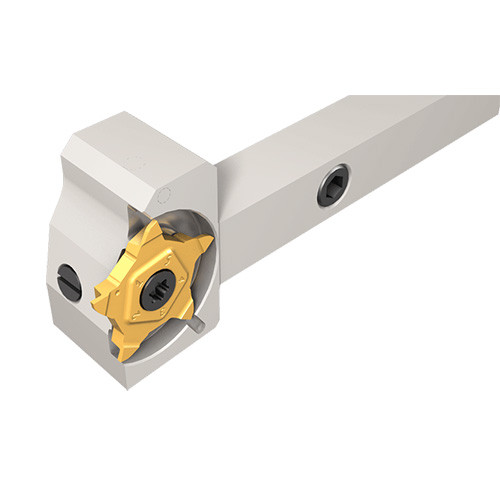

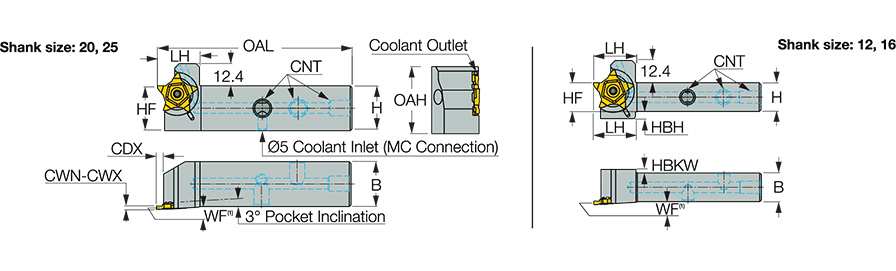

PCHRS 20-24 JHP-MC-QC
Parting Off Holder; 93.5 mm OAL × 0.8 mm CW Min. × 3.18 mm CW Max. × 6.2 mm Max Depth × 32.4 mm OAH ; Steel
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.8 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 3.18 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 93.5 mm | Measurement Type | Metric |
| Head Length (LH) | 23.5 mm | Coolant Entry Thread Size (CNT) | G1/8 |
| Cutting Depth Maximum (CDX) | 6.2 mm | Tool Assembly Length (LTA) | 34 mm |
| Overall Height (OAH) | 32.4 mm |
Product Features
| Family Description | Toolholders carrying PENTACUT inserts (with 5 cutting edges) for grooving, parting and recessing next to high shoulders, enables quick and accurate cutting-edge indexing. | Country of Origin | Israel |
Shipping Info
Package Weight
320
