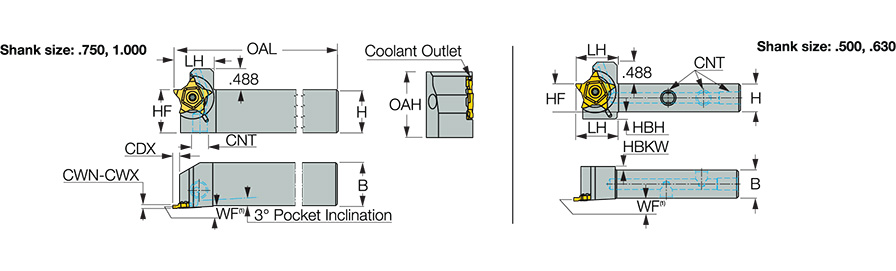

PCHRS 19-24 JHP-QC
Parting Off Holder; 5.315″ OAL × 0.031″ CW Min. × 1/8″ CW Max. × 0.244″ Max Depth × 1.488″ OAH ; Steel
| Shank Height (H) | 3/4″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 3/4″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.031″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5.315″ | Measurement Type | Inch |
| Head Length (LH) | 0.925″ | Coolant Entry Thread Size (CNT) | G1/8 |
| Cutting Depth Maximum (CDX) | 0.244″ | Head Bottom Offset Height (HBH) | 1/4″ |
| Overall Height (OAH) | 1.488″ | Tool Assembly Length (LTA) | 1.339″ |
Product Features
| Family Description | Toolholders carrying PENTACUT inserts (with 5 cutting edges) for grooving, parting and recessing next to high shoulders, enables quick and accurate cutting-edge indexing. | Country of Origin | Israel |
Shipping Info
Package Weight
444
