QC12-JTTERS0.8D16-CHP
Grooving Toolholder ; 0.472″ Shank Height ; 0.472″ Shank Width ; 0.031″ CW Min. ; 0.031″ CW Max. ; 0.315″ Max Depth ; Right Hand ; Steel

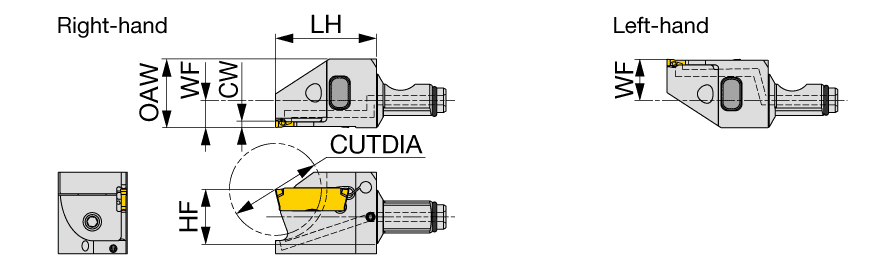

| Cutting Width Minimum (CWN) | 0.031″ | Functional Length (LF) | 0.783″ |
| Cutting Width Maximum (CWX) | 0.031″ | Head Length (LH) | 0.768″ |
| Cutting Depth Maximum (CDX) | 0.315″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 0.472″ | Application | | External grooving | Parting off | |
| Shank Width (B) | 0.472″ | Body Material | Steel |
| Functional Width (WF) | 0.236″ | Measurement Type | Inch |
Product Features
| Family Description | Modular head for external grooving and parting, with high pressure coolant capability | Country of Origin | Japan |
| Remarks | Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. |
