MCTRCH08.00XM20-25

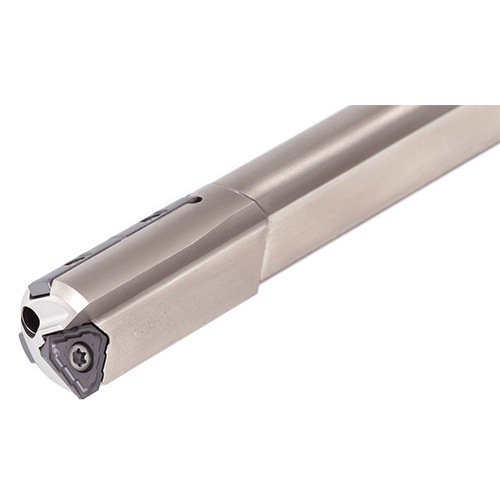

Indexable Insert Drill; 8 mm Dia. × 211.2 mm LU × 20 mm Shank Dia. × 285.2 mm OAL ; Steel

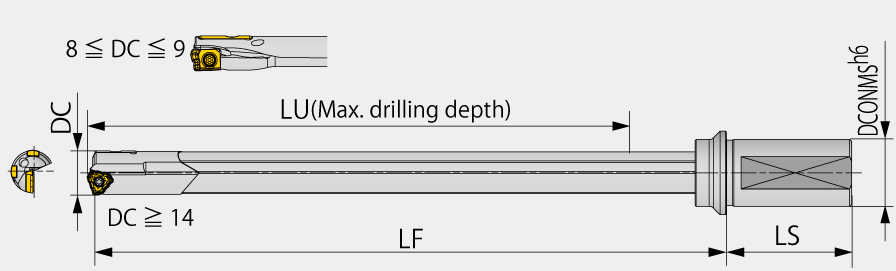

| Cutting Diameter (DC) | 8 mm | Overall Length (OAL) | 285.2 mm |
| Usable Length (LU) | 211.2 mm | Cutting Diameter Minimum (DCN) | 8 mm |
| Application | | General Drilling | | Cutting Diameter Maximum (DCX) | 8 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Point Length (PL) | 1.2 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Shank Length (LS) | 50 mm | Master Insert Identification (MIID) | ZSGT04... |
| Functional Length (LF) | 234 mm | Body Material | Steel |
Product Features
| Family Description | Indexable gundrill, L/D = 25, 40, 45 for drilling cross hole applications on CNC lathes and machining centers | Country of Origin | Japan |
| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the Product Report. |
Shipping Info
Package Weight
256
