MCTR09.00XM20-25

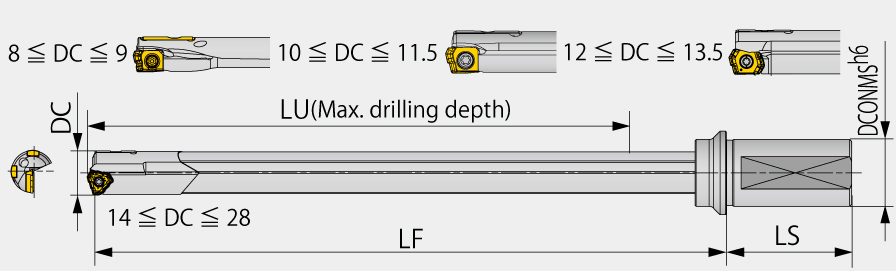

Indexable Insert Drill; 9 mm Dia. × 236.1 mm LU × 20 mm Shank Dia. × 312.2 mm OAL ; Steel
| Cutting Diameter (DC) | 9 mm | Cutting Diameter Minimum (DCN) | 9 mm |
| Usable Length (LU) | 236.1 mm | Cutting Diameter Maximum (DCX) | 9 mm |
| Application | | General Drilling | | Point Length (PL) | 1.2 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Shank Length (LS) | 50 mm | Master Insert Identification (MIID) | ZSGT050105R-NDJ |
| Functional Length (LF) | 261 mm | Body Material | Steel |
| Overall Length (OAL) | 312.2 mm |
Product Features
| Family Description | Drill body for lathes and machining centers, L/D = 25 | Country of Origin | Japan |

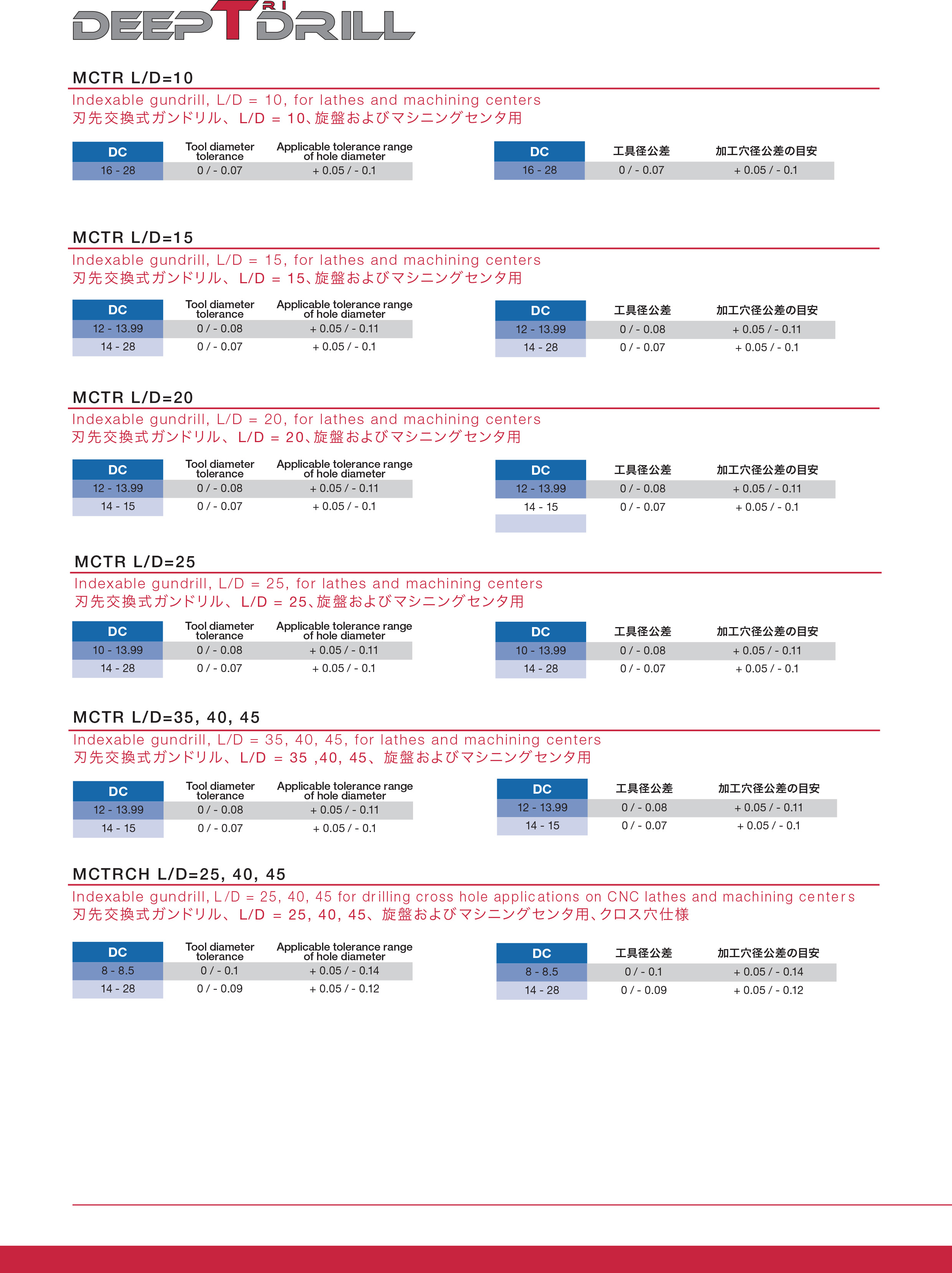

| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the More Info. |
Shipping Info
Package Weight
250
