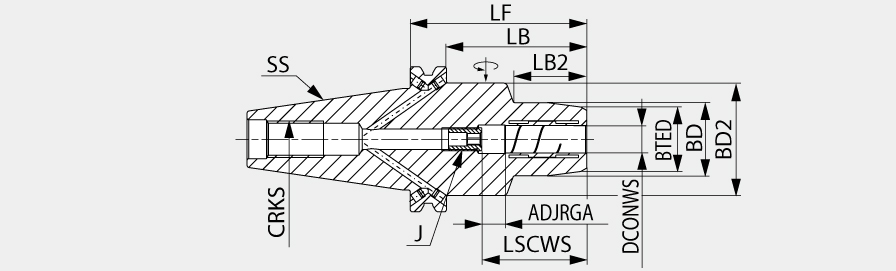

CAT50HYDRO25X81T
| Body Length (LB) | 61.95 mm | Clamping Length Workpiece Side (LSCWS) | 57 mm |
| Body Length_2 (LB_2) | 35.4 mm | Shank Size (SS) | 50 |
| Thread Designation Inside (THID) | M10x1 | Application | | Tapered shape interface | |
| Body Diameter (BD) | 48 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 68 mm | Body Taper End Diameter (BTED) | 41.5 |
| Overall Length (OAL) | 81 mm | Body Material | Steel |
Product Features
| Family Description | CAT Integrated Holder High Precision Hydraulic Chuck | Country of Origin | GERMANY |
| Remarks | Wrench is not included. Please order separately. Tool shank tolerance: h6 Balanced to G2.5, max n: 25,000 min 1 |
Shipping Info
Package Weight
0.000
