CAT40HYDRO5/8X2.500T

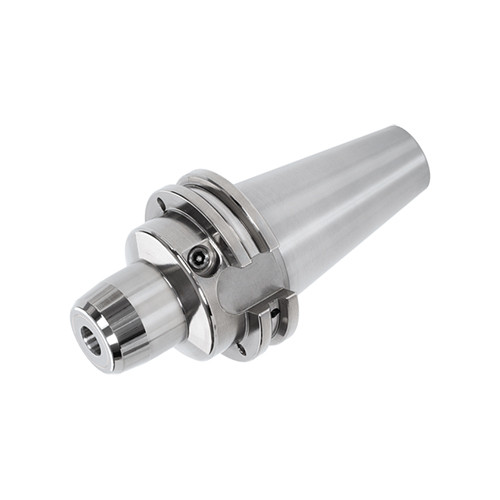

CAT Integrated Holder High Precision Hydraulic Chuck

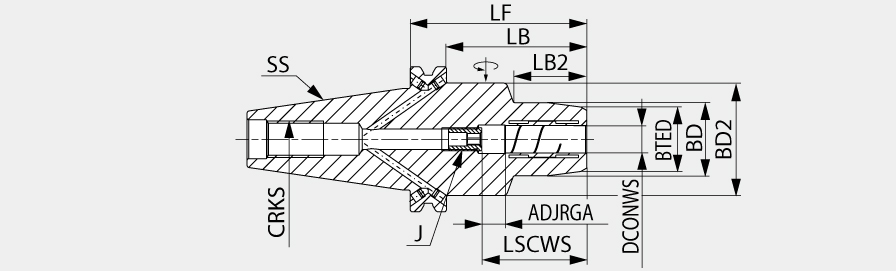

| Body Length (LB) | 1-3/4″ | Clamping Length Workpiece Side (LSCWS) | 1.929″ |
| Body Length_2 (LB_2) | 1.102″ | Shank Size (SS) | 40 |
| Thread Designation Inside (THID) | M10x1 | Application | | Tapered shape interface | |
| Body Diameter (BD) | 1.496″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 1.929″ | Body Taper End Diameter (BTED) | 1.303 |
| Overall Length (OAL) | 2-1/2″ | Body Material | Steel |
Product Features
| Family Description | CAT Integrated Holder High Precision Hydraulic Chuck | Country of Origin | Germany |
| Remarks | Wrench is not included. Please order separately. Tool shank tolerance: h6 Balanced to G2.5, max n: 25,000 min 1 |
