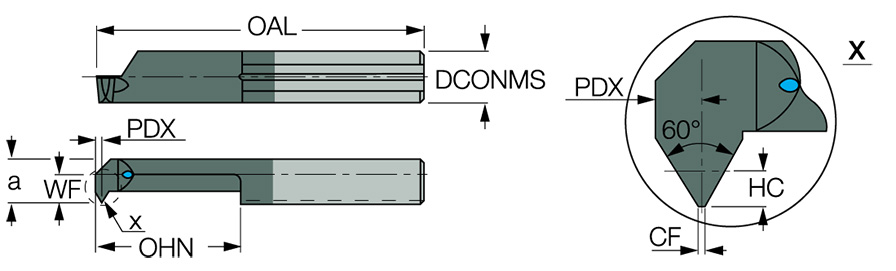

PICJ RTH19I1.00D048 IC908
Boring Bar; 0.197″ Shank Dia. × 0.189″ Min Bore Dia. × 1.378″ LF ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.197″ | Functional Width (WF) | 0.075″ |
| Minimum Bore Diameter (DMIN) | 0.189″ | Central Flat (CF) | 0.005″ |
| Functional Length (LF) | 1.378″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | Solid Threading Tools |
| Grade | IC908 | Measurement Type | Inch |
| Application | | Threading (Int.) | | Thread Pitch (TP) | 1 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Standard | THFT | |
| Front End Width (a) | 0.173″ | Thread Form Type (THFT) | VP60 |
Product Features
| Family Description | Inserts with a 60° internal thread profile and inner coolant channel, for .094″ min. bore diameter. | Country of Origin | Israel |
| Remarks | DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Package Weight
7
