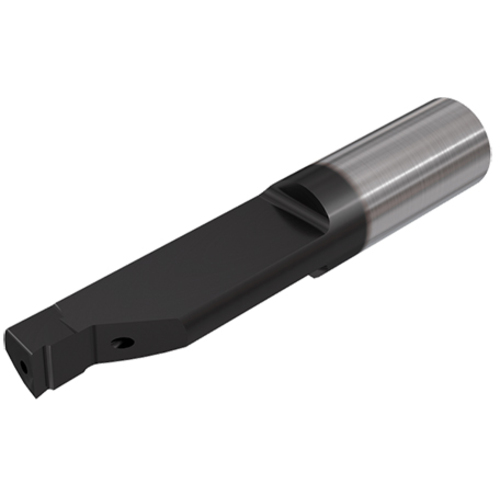

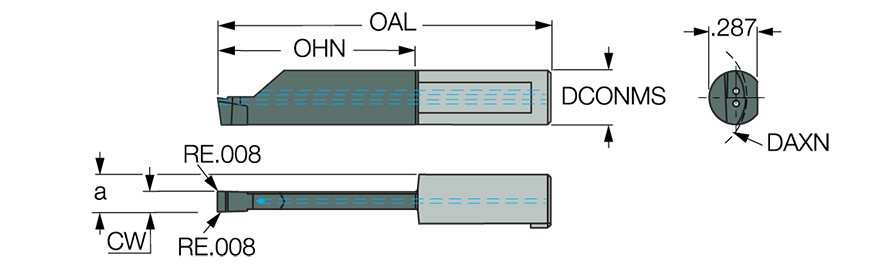

PICJ RF30D20T40-40 IC908
Tool; 0.315″ Shank Dia. × 0.118″ CW × 2.362″ OAL ; Carbide ; Right Hand ; TiAlN ; IC908
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Width (CW) | 0.118″ | Max. Face Grooving Feed (ffg(max)) | 0.0016 ″/rev |
| Overall Length (OAL) | 2.362″ | Min. Face Grooving Feed (ffg(min)) | 0.0004 ″/rev |
| Cutting Direction (HAND) | Right Hand | Axial Groove Outside Diameter Minimum (DAXN) | 0.787″ |
| Cutting Edge Material | Carbide | Front End Width (a) | 0.217″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overhang Minimum (OHN) | 1.57″ |
| Application | | Face Grooving | Int. Face Grooving | |
Product Features
| Family Description | PICCO-JETCUT mini inserts with an Internal Coolant Holes for deep face grooving at Dmin .63/.79″ | Country of Origin | Israel |
| Remarks | All inserts have two coolant holes which may be used with coolant pressure up to 1450 PSI |
Shipping Info
Package Weight
25
