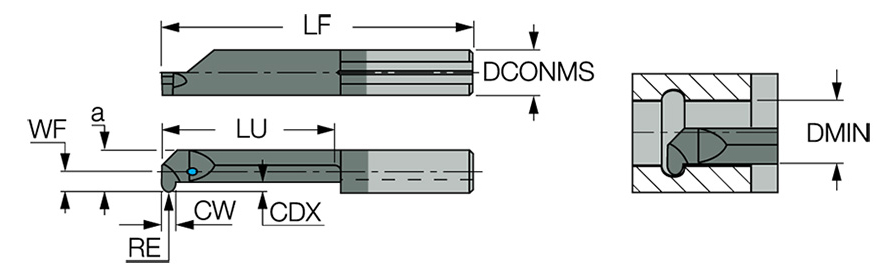

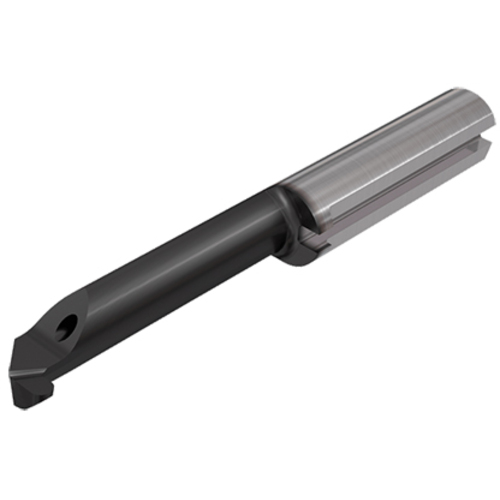

PICJ RP15D60-25 IC908
Tool; 0.236″ Shank Dia. × 0.059″ CW × 0.071″ Max Depth × 1.575″ OAL × 0.0295″ Corner Radius ; Carbide ; Right Hand ; TiAlN ; IC908
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Grade | IC908 |
| Corner Radius (RE) | 0.0295″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Width (CW) | 0.059″ | Application | | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 0.071″ | Tool Type | Solid, Turning & Grooving |
| Overall Length (OAL) | 1.575″ | Minimum Bore Diameter (DMIN) | 0.236″ |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 0.209″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Inserts featuring full radius, with inner coolant channel for internal boring and profiling from .157″ bore diameter | Country of Origin | Israel |
| Remarks | PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Package Weight
0.029
