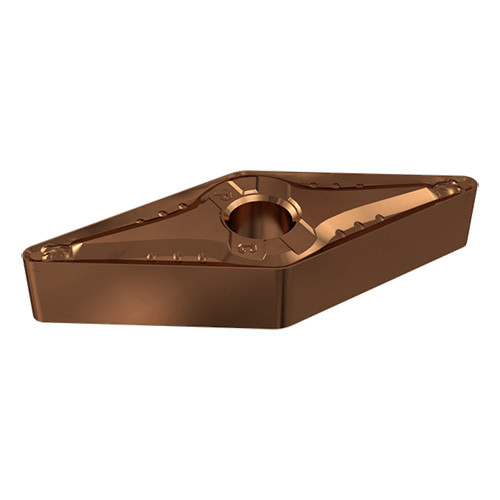

VNMG 332-F3H IC1024
| Applicable Material | | Hard Materials | | Grade | IC1024 |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | VNMG | Min D.O.C. | 0.008″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Size | 332 | Min. Turning Feed (ft(min)) | 0.00314 ″/rev |
| Cutting Edge Length (L) | 0.654″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | F3H |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAl+TiAlSiN | Body Material | Carbide |
Product Features
| Family Description | Double-sided 35° Rhombic inserts for semi-finish and finish turning of hardened steel. Low cutting forces due to very sharp edge and positive rake | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
12.4
