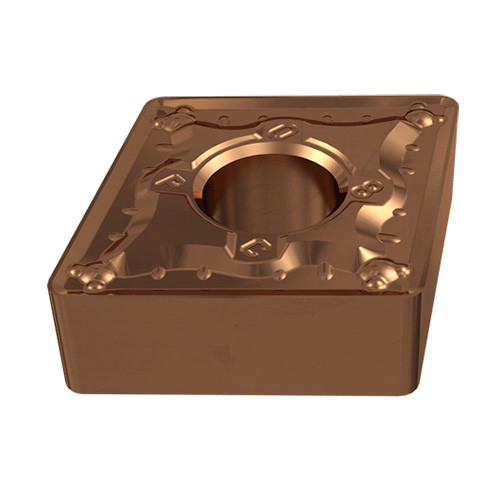

CNMG 432-F3H IC1024
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.203″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | CNMG | Min D.O.C. | 0.02″ |

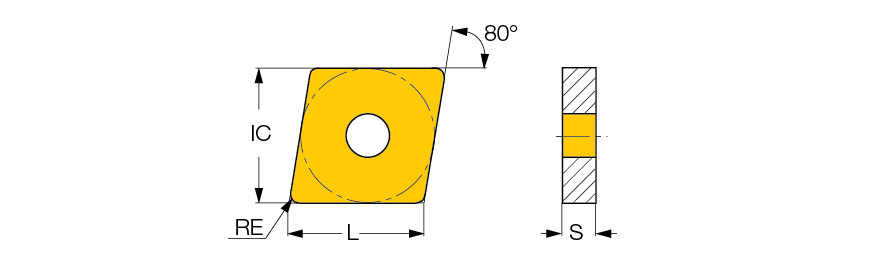

| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 432 | Min. Turning Feed (ft(min)) | 0.00591 ″/rev |
| Cutting Edge Length (L) | 0.508″ | Max. Turning Feed (ft(max)) | 0.02165 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | F3H |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAl+TiAlSiN | Body Material | Carbide |
| Grade | IC1024 |
Product Features
| Family Description | Double-sided 80° rhombic inserts for semi-finish and finish turning of hardened steel. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
9.7
