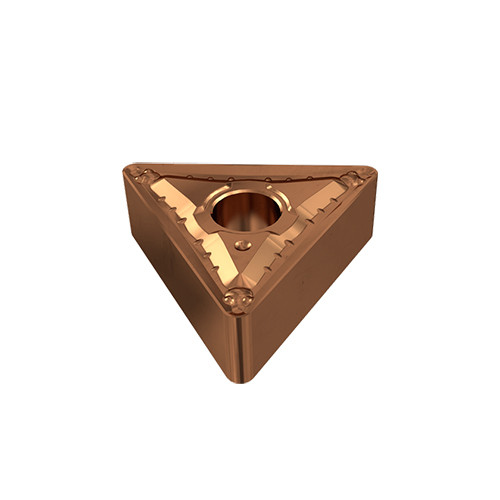

TNMG 332-F3H IC1024
| Applicable Material | | Hard Materials | | Grade | IC1024 |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | TNMG | Min D.O.C. | 0.02″ |

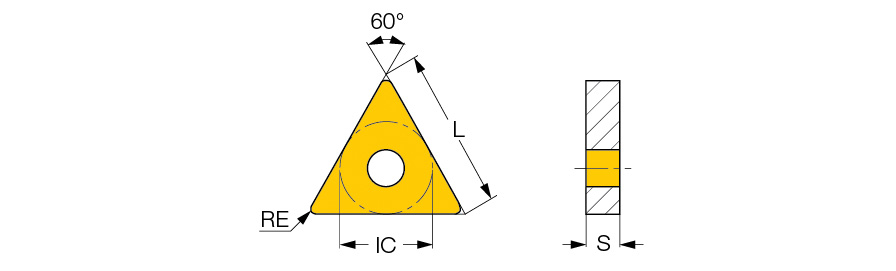

| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Size | 332 | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | F3H |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAl+TiAlSiN |
Product Features
| Family Description | Double-sided Triangular inserts for semi-finish and finish turning of hardened steel. Low cutting forces due to very sharp edge and positive rake | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
8.2
