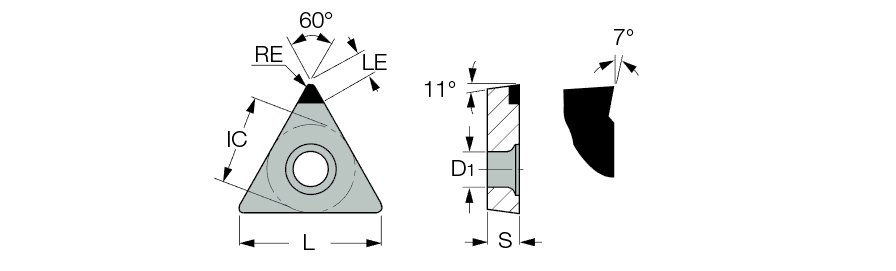

TPGX 221 LN-7 ID5
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.138″ |
| Application | | Int. 60° Triangle 91° Approach | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | TPGX | Min D.O.C. | 0.004″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 221 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.433″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | X |
| Cutting Edge Material | PCD | Measurement Type | Inch |
| Grade | ID5 | Body Material | Carbide |
Product Features

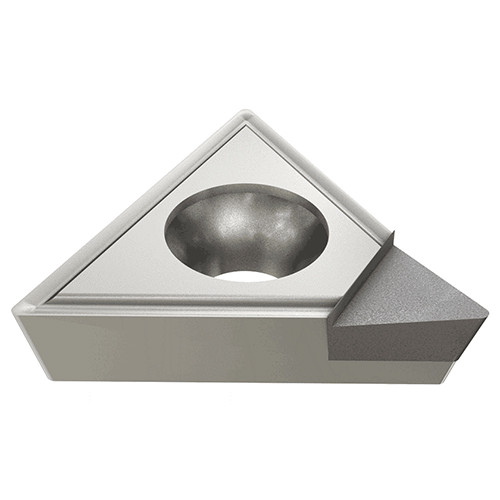

| Family Description | Triangular inserts with PCD single top corner brazed tip, 11° clearance and positive rake angle, for finishing aluminum | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, Click on More Info |
