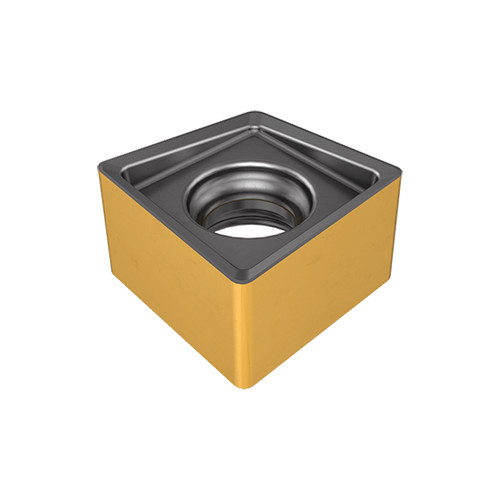

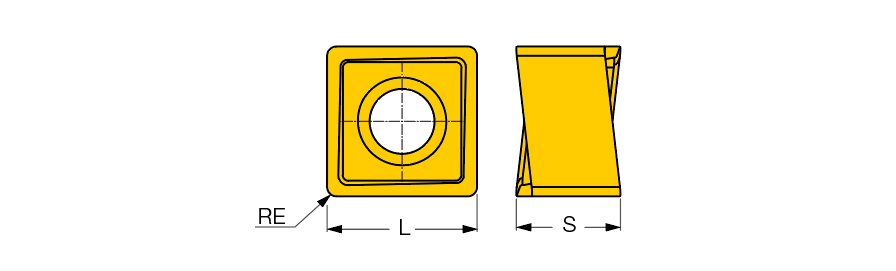

XNMU 060304-PNTN IC810
| Applicable Material | | Steel | Cast Iron | | Grade | IC810 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Insert Length (INSL) | 0.252″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.2362″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Insert Thickness (S) | 0.173″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiCrN+TiN | Body Material | Carbide |
Product Features
| Family Description | Square inserts with 4 right- and 4 left-hand cutting edges | Country of Origin | Israel |
Shipping Info
Package Weight
2.6
