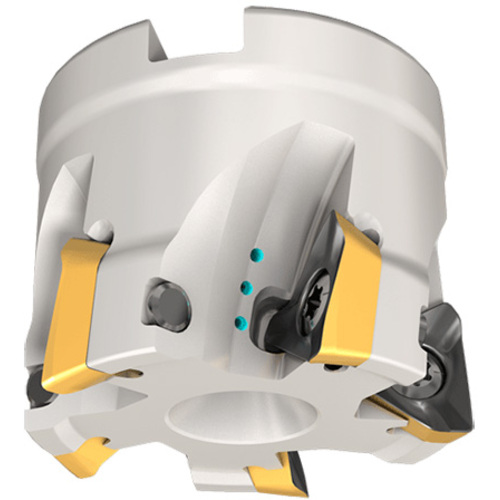

HM390 FTPD2.0-6-.75-10JHP
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.575″ OAL × 0.315″ LOC ; 6 Inserts ; 90 Degrees

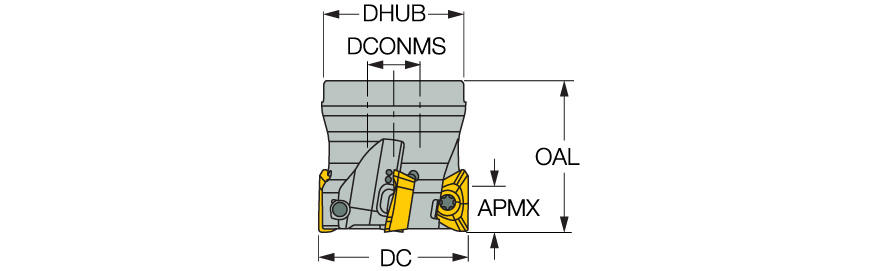

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | HM390 TPKT 1003 PDR |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.315″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1.575″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.85″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A |
Product Features
| Family Description | 90° JHP face mill with pinpointed coolant outlets carrying HM390 triangular inserts with helical cutting edge | Country of Origin | Israel |
| Remarks | When installing inserts with a corner radius greater than .079, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info For adaptation, click on More Info |
Shipping Info
Package Weight
520
