C6SVJCL45065-16
Turning Toolholder; 4.055″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 2.48″ Shank Dia. ; Left Hand ; Steel

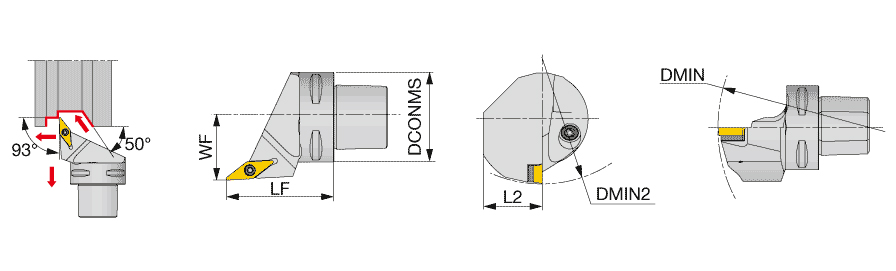

| Shank Height (H) | 1/2″ | Master Insert Identification (MIID) | VCMT332 |
| Shank Width (B) | 1/2″ | Application | | Face contact interface | For 35deg Rhombic insert | |
| Overall Length (OAL) | 4.055″ | Body Material | Steel |
| Functional Length (LF) | 2.559″ | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Width (WF) | 1.772″ | Tool Type | Tapered Shank Turning Tools |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
Product Features
| Family Description | "TungCap" Screw-on clamp toolholder with 93 deg approach angle for positive 35 deg rhombic inserts | Country of Origin | Japan |
| Remarks | The last character of designation is "N": Applicable for 7 MPa coolant. The last character of designation isn't "N": Applicable for 3 MPa coolant. The items without DMIN and DMIN2 cannot be used for boring. |
Shipping Info
Package Weight
3.036
