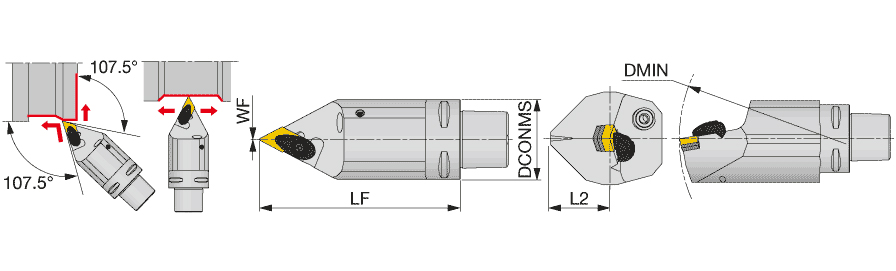

C6ADNNN00140-15
Turning Toolholder; 5.512″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 63″ Shank Dia. ; Neutral ; Steel
| Shank Height (H) | 1/2″ | Master Insert Identification (MIID) | DN**4... |
| Shank Width (B) | 1/2″ | Application | ISO 26623-1 (TungCap) | Neg,N-style, 63deg Approach |
| Overall Length (OAL) | 5.512″ | Body Material | Steel |
| Functional Length (LF) | 4″ | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Width (WF) | 0″ | Tool Type | Tapered Shank Turning Tools |
| Connection Diameter Machine Side (DCONMS) | 63″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0″ | Style | SCLCL08-3A |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | "TungCap" Double-clamp toolholder with 63deg approach angle, for negative 55deg rhombic inserts | Country of Origin | Japan |
| Remarks | The last character of designation is "N":Capable for 7Mpa coolant pressure. option: ASD423 (shim for DN**1506...) |
Shipping Info
Package Weight
6.924
