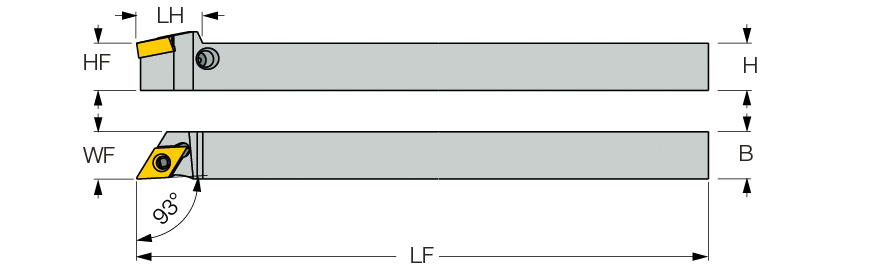

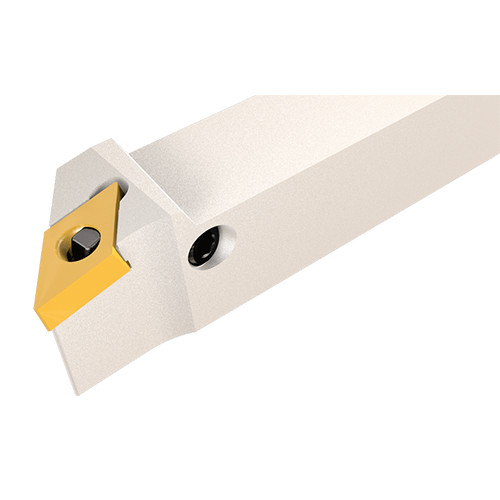

PDJNR 1010X-07S
| Shank Height (H) | 0.394″ | Application | | Ext. 55° Diamond 93° Approach | |
| Shank Width (B) | 0.394″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 4.724″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 0.551″ | Body Material | Steel |
| Functional Width (WF) | 0.394″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | DNGP 2.. |
Product Features
| Family Description | Lever lock tools carrying DNGP 22.. double-sided 55° rhombic inserts. | Country of Origin | Japan |
| Remarks | Use a left-hand insert on a right-hand tool and vice versa. |
Shipping Info
Package Weight
0.243
