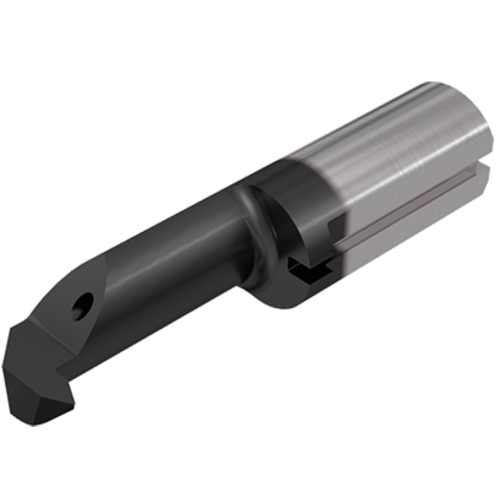

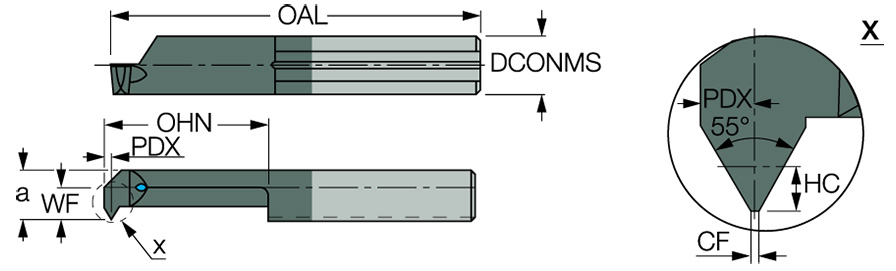

PICJ RTH14W24D060 IC908
Boring Bar; 0.236″ Shank Dia. × 0.236″ Min Bore Dia. × 1.181″ LF ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Central Flat (CF) | 0.005″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Body Material | Carbide |
| Functional Length (LF) | 1.181″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Tool Type | Solid Threading Tools |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Threads per Inch Maximum (TPIX) | 24 |
| Application | | Threading (Int.) | | Threads per Inch Minimum (TPIN) | 16 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Standard | THFT | |
| Front End Width (a) | 0.209″ | Thread Form Type (THFT) | VP55 |
| Functional Width (WF) | 0.091″ |
Product Features
| Family Description | Inserts with inner coolant channel for 55° internal threading profile | Country of Origin | Israel |
| Remarks | All mini-bars have sharp corners PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
