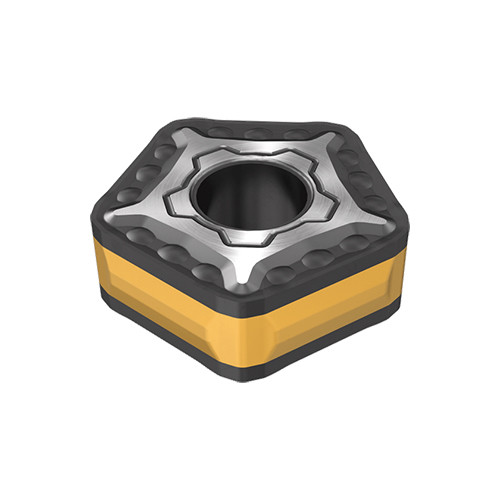

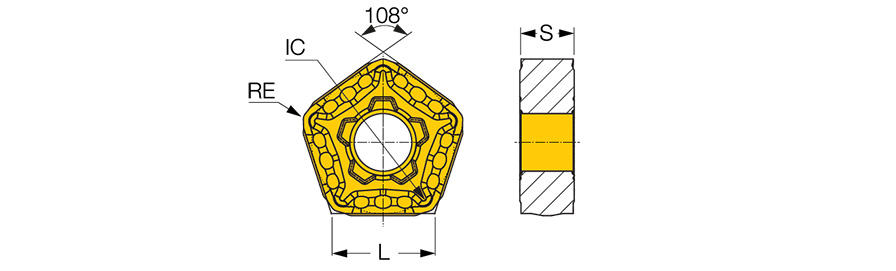

POMG 432-M3PW-IQ IC8150
Drill Head; 0.488 Dia. ; IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Cast Iron | | Coating | TiCN+Al2O3+TiCN+TiN |
| Application | | Ex. 108° pentagonal 14.5° Approch | Ex. 108° pentagonal 55° Approch | | Grade | IC8150 |
| Insert Style | POMG | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0315″ | Min D.O.C. | 0.008″ |
| Insert Size | 432 | Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.363″ | Min. Turning Feed (ft(min)) | 0.02756 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.05906 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Double-Sided Pentagonal Shaped Insert for Medium, Rough, and High Feed Turning Applications | Country of Origin | Israel |
| Remarks | The specified machining recommendations in the above table are valid only for PPXOR/L-TF-IQ tools. For PPXOR/L-IQ tools: ap= .039-.197, ft= .012-.027 inch/rev. |
Shipping Info
Package Weight
9.3
