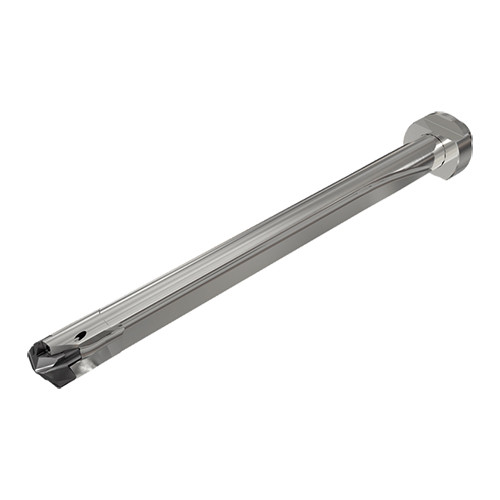

MNSNT 0551-3070-MF16X1

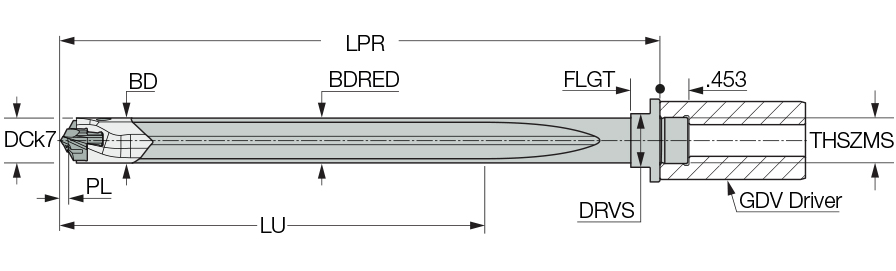

Drill; 0.551″ Dia. × 0.551″ Min. Dia. × 0.57″ Max. Dia. × 34.193″ OAL × 30.7087″ LU
| Cutting Diameter (DC) | 0.551″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 30.7087″ | Measurement Type | Inch |
| Application | | Drilling | Gundrills | | Master Insert Identification (MIID) | HCP 140 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.14291″ |
| Insert Seat Size Code (SSC) | 14.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.551″ | Flange Diameter (DF) | 0.945″ |
| Cutting Diameter Maximum (DCX) | 0.57″ | Decimal Equivalent | 0.551″ |
| Protruding Length (LPR) | 33.74″ | Connection Thread Nominal Size Machine Side (THSZMS) | MF16X1 |
| Overall Length (OAL) | 34.193″ | Shank Diameter Tolerance (TCDMM) | $$$$ |
Product Features
| Family Description | Gundrills carrying standard SUMOCHAM indexable inserts and a rear threaded connection which enables attaching different standard shank types. | Country of Origin | Israel |
Shipping Info
Package Weight
360
