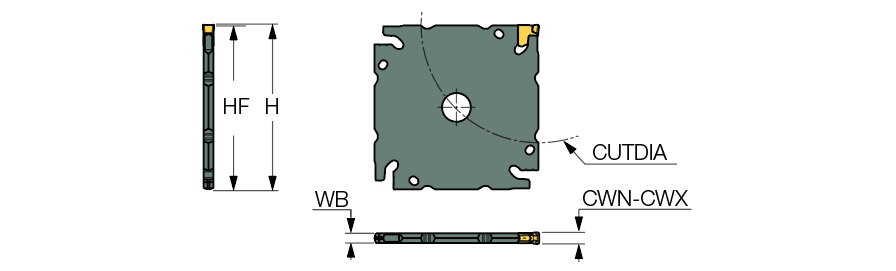

| Shank Height (H) | 2.283″ | Body Material | Steel |
| Body Width (WB) | 0.065″ | Work Piece Parting Diameter Maximum (CUTDIA) | 3.228″ |
| Cutting Width Minimum (CWN) | 0.071″ | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 0.098″ | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 2.272″ |
Product Features

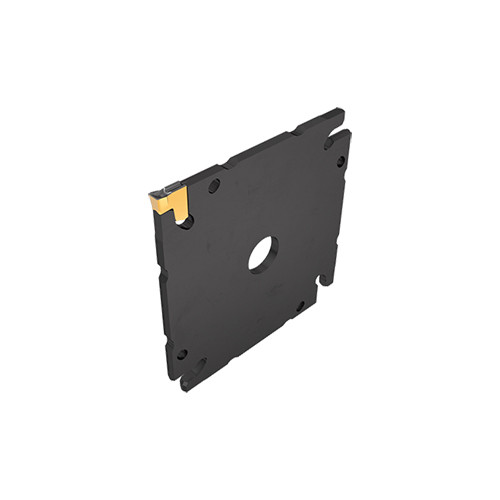

| Family Description | Parting and Grooving Square Adapters Compatible with TANG-GRIP Inserts (single-ended),fit the unique 'crown' clamping mechanism . Provide high coolant pressure up to 340 bar. | Country of Origin | Israel |
| Remarks | Suitable for all TANG-GRIP inserts |
Shipping Info
Package Weight
71
