C5SVVCN00125-16

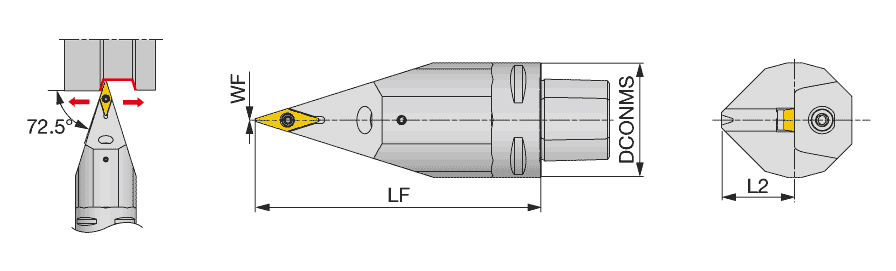

Turning Toolholder; 6.102″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 1.969″ Shank Dia. ; Neutral ; Steel
| Shank Height (H) | 1/2″ | Master Insert Identification (MIID) | VCMT332 |
| Shank Width (B) | 1/2″ | Application | | Face contact interface | For 35deg Rhombic insert | |
| Overall Length (OAL) | 6.102″ | Body Material | Steel |
| Functional Length (LF) | 4.921″ | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Width (WF) | 0″ | Tool Type | Tapered Shank Turning Tools |
| Connection Diameter Machine Side (DCONMS) | 1.969″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Style | SCLCL08-3A |
Product Features
| Family Description | "TungCap" Screw-on clamp toolholder with 72.5deg approach angle, for positive 35deg rhombic inserts | Country of Origin | Japan |
| Remarks | The last character of designation is "N": Applicable for 7 MPa coolant. The last character of designation isn't "N": Applicable for 3 MPa coolant. |
Shipping Info
Package Weight
3.596
