M1x0.25 D5 1.5P A BRAND A-XPF VI

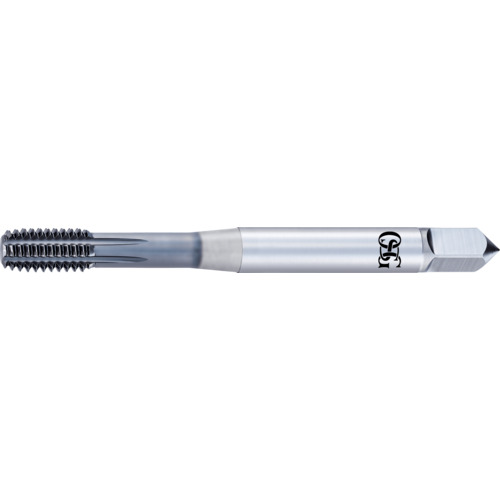

Forming Tap; M1 × 0.25 mm ; 40 mm OAL × 6.5 mm LU × 3.581 mm Shank Dia. ; VC-10 ; VI ; D5 ; Series 26350
| Tool Type | High Performance Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M1 | Chamfer | 1.5P |
| Thread Pitch (TP) | 0.25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | End Shape | Bottom |
| Thread Cutting Part Length (THL) | 5.5 mm | Cutting Edge Material | VC-10 |
| Usable Length (LU) | 6.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3.581 mm | Series/List # | 26350 |
| Thread Tolerance Class (TCTR) | D5 | Product_Description | M1x0.25 D5 1.5P A BRAND A-XPF VI |
| Thread Standard | M | Thread Size | M1x0.25 |
| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Hard Materials | | Body Material | VC-10 |
| Coating | VI |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.01
