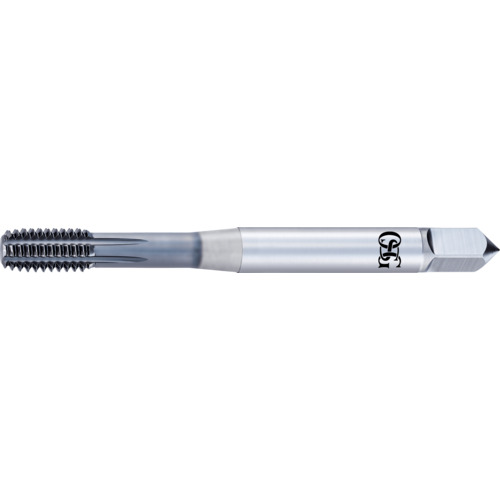

0-80 H3 2.5P A BRAND A-XPF VI
Forming Tap; #0 - 80 ; 1.575″ OAL × 0.355″ LU × 0.141″ Shank Dia. ; VC-10 ; VI ; H3 ; Series 26250
| Tool Type | High Performance Tap | Threads per Inch (TPI) | 80 |
| Thread Diameter Size (TDZ) | #0 | Chamfer | 2.5P |
| Overall Length (OAL) | 1.575″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.315″ | End Shape | Modified Bottom |
| Usable Length (LU) | 0.355″ | Cutting Edge Material | VC-10 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | H3 | Series/List # | 26250 |
| Thread Standard | UNF | Product_Description | 0-80 H3 2.5P A BRAND A-XPF VI |
| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Hard Materials | | Thread Size | 0-80 |
| Coating | VI | Body Material | VC-10 |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.01
