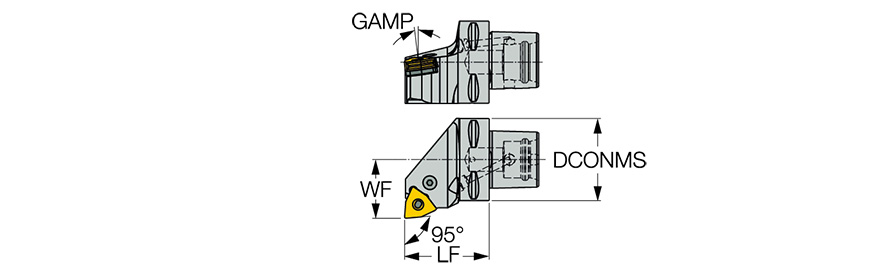

C6 PWLOL-45065-13-IQ
| Overall Length (OAL) | 4.055″ | Application | | Ext. 80° Trigon 95° Approach | |
| Functional Length (LF) | 2.559″ | Rake Angle Axial (GAMP) | -6.5 Degrees |
| Functional Width (WF) | 1.772″ | Rake Angle Radial (GAMF) | -6.5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/4″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | WOMG 64..-IQ | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Lever-lock and dovetail rigid clamping pocket tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying unique double-sided trigon inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
3.100
