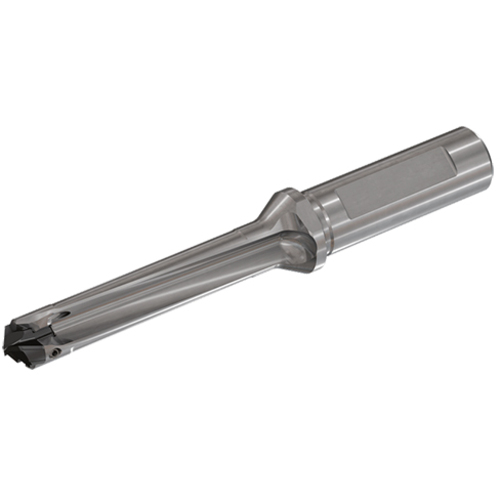

DLN 0571-285-063A-5D

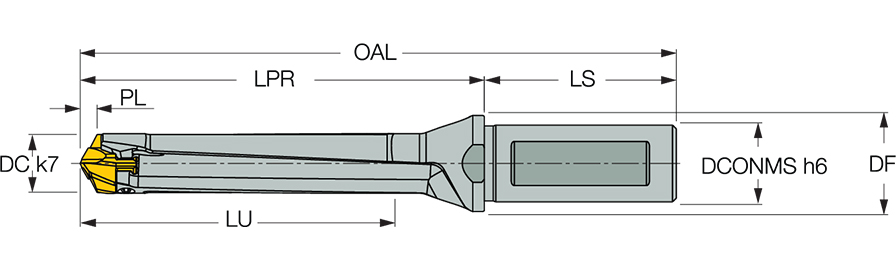

Drill; 0.571″ Dia. × 0.571″ Min. Dia. × 0.587″ Max. Dia. × 5/8″ Shank Dia. × 5.537″ OAL × 2.955″ LU × 1.89″ Shank Length ; Weldon Shank
| Cutting Diameter (DC) | 0.571″ | Overall Length (OAL) | 5.537″ |
| Usable Length (LU) | 2.955″ | Shank Length (LS) | 1.89″ |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ILP 145-2M |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Point Length (PL) | 0.10386″ |
| Insert Seat Size Code (SSC) | 14.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.571″ | Flange Diameter (DF) | 0.79″ |
| Cutting Diameter Maximum (DCX) | 0.587″ | Decimal Equivalent | 0.571″ |
| Protruding Length (LPR) | 3.65″ | Body Diameter Reduced (BDRED) | 0.79″ |
| Functional Length (LF) | 3.546″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Exchangeable head drills with screw lock system for interrupted drilling applications | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
156
