DLN 0669-201-075A-3D

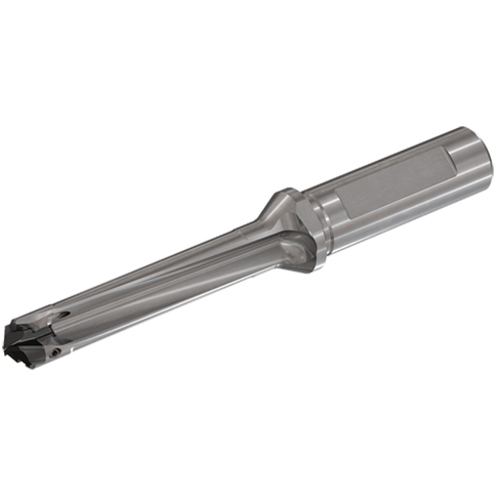

Drill; 0.201″ Dia. × 0.669″ Min. Dia. × 0.705″ Max. Dia. × 3/4″ Shank Dia. × 5.035″ OAL × 2.126″ LU × 1.97″ Shank Length ; Weldon Shank

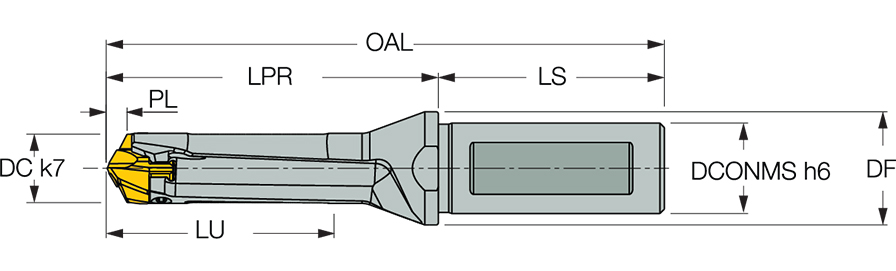

| Cutting Diameter (DC) | 0.201″ | Shank Length (LS) | 1.97″ |
| Usable Length (LU) | 2.126″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ILP 170-2M |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.1185″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Material | Steel |
| Insert Seat Size Code (SSC) | 17.0 | Flange Diameter (DF) | 0.98″ |
| Cutting Diameter Minimum (DCN) | 0.669″ | Decimal Equivalent | 0.201″ |
| Cutting Diameter Maximum (DCX) | 0.705″ | Body Diameter Reduced (BDRED) | 0.98″ |
| Protruding Length (LPR) | 3.07″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 5.035″ |
Product Features
| Family Description | Exchangeable head drills with screw lock system for interrupted drilling applications | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
