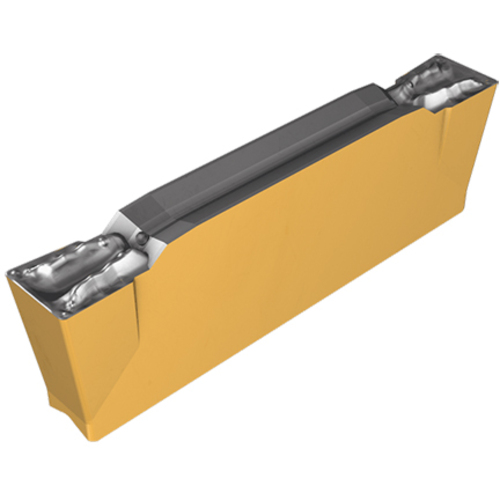

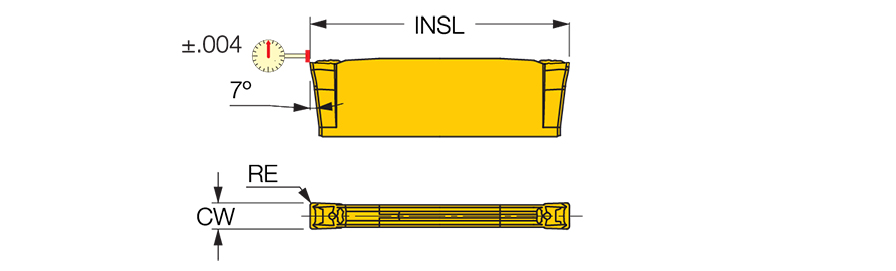

DGN 3002T IC1010
Parting Off Insert; 0.118″ CW × 0.785″ Length × 0.0079″ Corner Radius ; Carbide ; TiAlN, TiN ; IC1010
| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Overall Length (OAL) | 0.785″ | Chip Breaker Type | T |
| Insert Length (INSL) | 0.785″ | Tool Type | Parting & Grooving Inserts |
| Cutting Depth Maximum (CDX) | 0.709″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN, TiN | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Grade | IC1010 | Insert Width (W1) | 0.094″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Double-sided inserts for parting and grooving, suitable for ductile materials, steel and stainless steel. | Country of Origin | Israel |
Shipping Info
Package Weight
5.3
