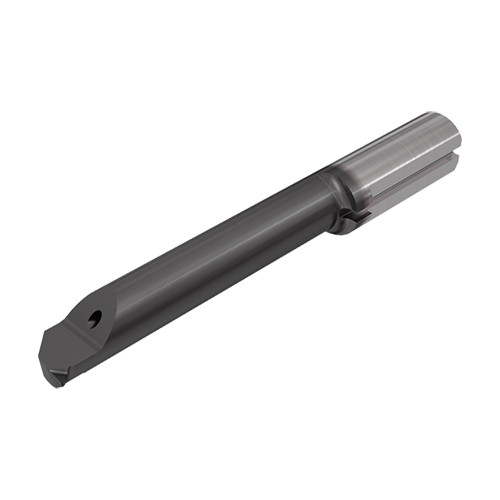

PICJ RT47D60R15-30 IC908
Boring Bar; 0.236″ Shank Dia. × 0.236″ Min Bore Dia. × 0.02″ Max Bore Depth × 1.1417″ LU × 1.772″ LF ; 0.0059″ Corner Radius ; Carbide ; TiAlN

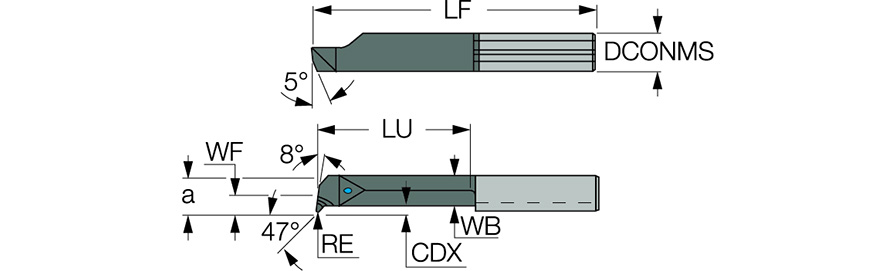

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Corner Radius (RE) | 0.0059″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Cutting Depth Maximum (CDX) | 0.02″ |
| Functional Length (LF) | 1.772″ | Functional Width (WF) | 0.091″ |
| Coating | TiAlN | Usable Length (LU) | 1.1417″ |
| Grade | IC908 | Body Material | Carbide |
| Application | | Int. Boring and Profiling | | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Solid Carbide Turn Tool |
| Front End Width (a) | 0.209″ | Measurement Type | Inch |
Product Features
| Family Description | PICCOCUT inserts for internal deep profiling | Country of Origin | Israel |
| Remarks | Left hand inserts on request PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Package Weight
16
