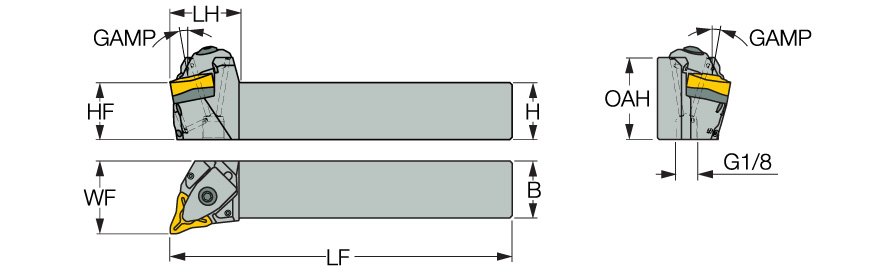

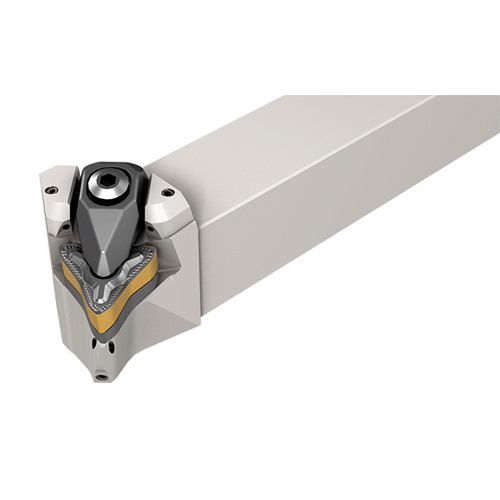

Q6-DMXNL 20-4-SL-JHP
| Shank Height (H) | 1-1/4″ | Master Insert Identification (MIID) | Q6-MNMG120608-M3#-SL |
| Shank Width (B) | 1-1/4″ | Application | | High Feed and Diverse Turning Direction Applicatio | |
| Functional Length (LF) | 6″ | Rake Angle Axial (GAMP) | 7.8 Degrees |
| Head Length (LH) | 1.221″ | Rake Angle Radial (GAMF) | 7.8 Degrees |
| Functional Width (WF) | 1.526″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 0.435″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Safety lock tools with high feed negative inserts for roughing applications. Three grooves in the pocket and a matching ridge at the insert bottom ensure secure and highly stable machining at very high feed rates. | Country of Origin | Israel |
Shipping Info
Package Weight
1243
