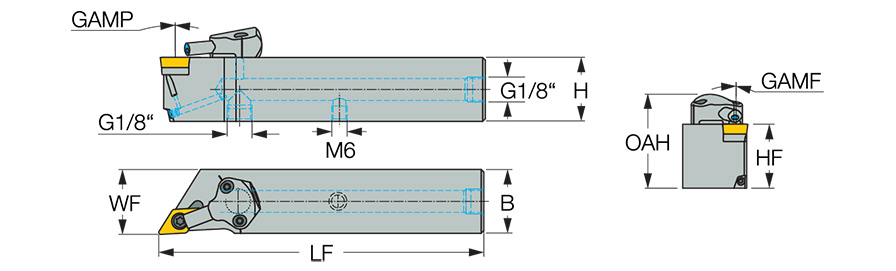

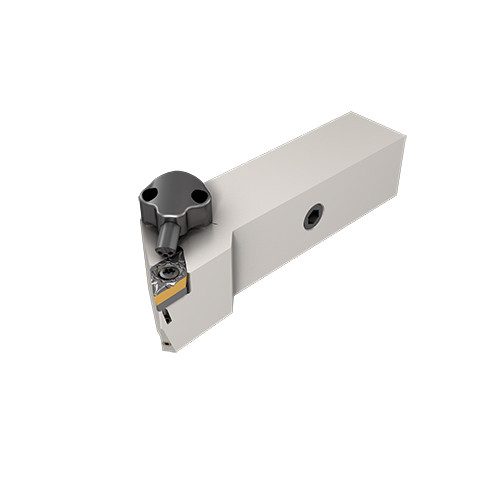

SDJCL 2020X-11-JHP-MC
| Shank Height (H) | 20 mm | Application | | Ext. 55° Diamond 93° Approach | |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 105 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 35 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Tools with High-Pressure Coolant Channels Carrying 55° Positive Rhombic Inserts | Country of Origin | Israel |
Shipping Info
Package Weight
403
