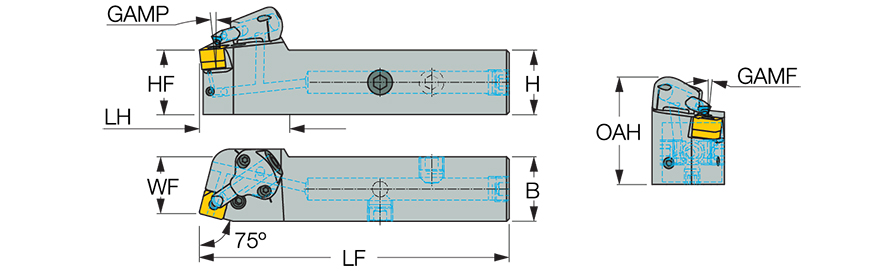

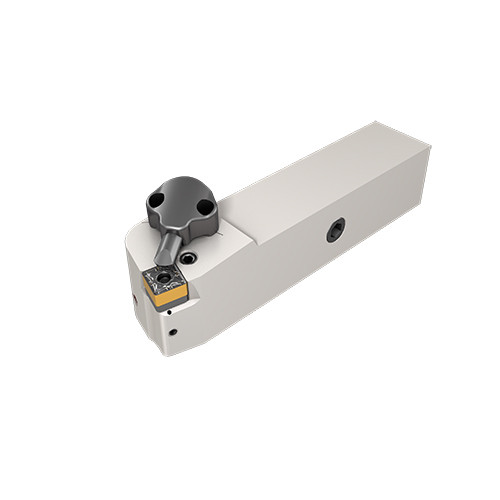

PSBNL 2525X-09-JHP-MC
| Shank Height (H) | 25 mm | Application | | Ext. 90° Square 75° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 120 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 35 mm | Body Material | Steel |
| Functional Width (WF) | 22 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Lever lock 75° entering angle turning tools with high-pressure coolant channels carrying negative square inserts | Country of Origin | Israel |
Shipping Info
Package Weight
635
