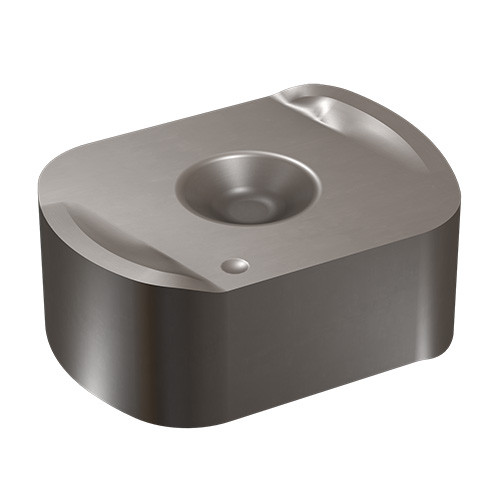

EFN WDNX 0904-E04 IS35
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Grade | IS35 |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.35 mm/tooth |
| Insert Length (INSL) | 12 mm | Cutting Edge Material | Ceramic |
| Corner Radius (RE) | 7 mm | Tool Type | Fast Feed Endmill |
| Depth of Cut Maximum (APMX) | 1.5 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Inscribed Circle Diameter (IC) | 9 mm | Measurement Type | Metric |
| Insert Thickness (S) | 5 mm | Body Material | Carbide |
Product Features
| Family Description | Double-sided ceramic inserts with 4 cutting edges for fast feed milling | Country of Origin | S.Korea |
| Remarks | For machining recommendations, radius for programming and adaptation click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
2.7
