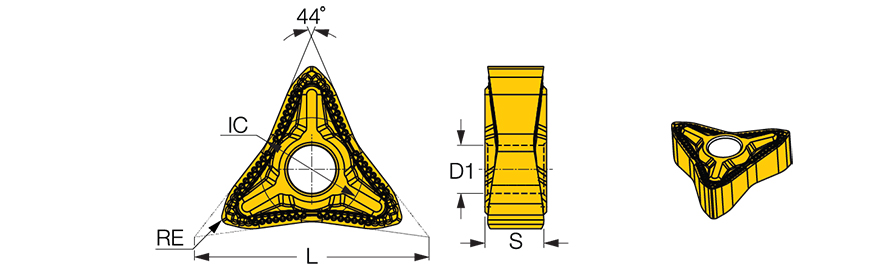

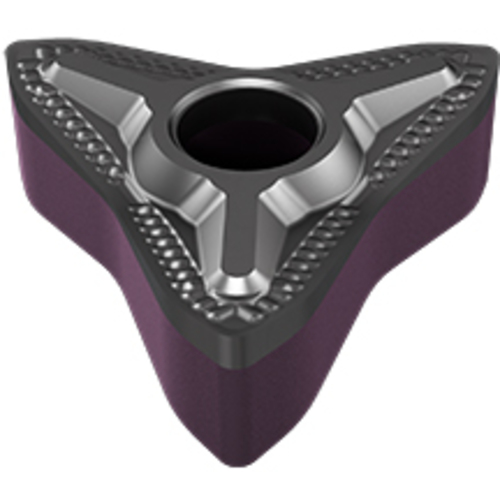

Q6-MNMG120608-M3M-SL IC6015
| Applicable Material | | Stainless Steel | | Grade | IC6015 |
| Application | | High Feed and Diverse Turning Direction Applicatio | | Fixing Hole Diameter (D1) | 0.203″ |
| Insert Style | Q6-M | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0315″ | Min D.O.C. | 0.02″ |
| Insert Size | NMG1 | Depth of Cut Maximum (APMX) | 0.138″ |
| Cutting Edge Length (L) | 0.988″ | Min. Turning Feed (ft(min)) | 0.00787 ″/rev |
| Insert Thickness (S) | 0.248″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Inscribed Circle Diameter (IC) | 0.435″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN |
Product Features
| Family Description | High feed insert with six reinforced cutting edges and negative flank for roughing applications, enable diverse directions machining | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
15
