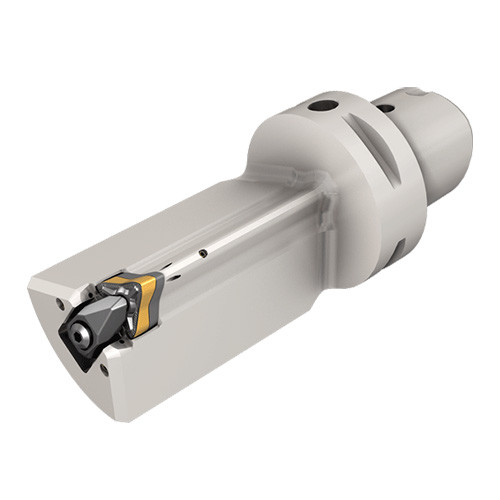

C6 Q6-DMXNN-12-SL-H100-Y
Turning Toolholder; 5.945″ OAL × 2.48″ Shank Dia. ; Neutral ; Steel
| Overall Length (OAL) | 5.945″ | Master Insert Identification (MIID) | Q6-MNMG1206 |
| Functional Length (LF) | 3.937″ | Application | | High Feed and Diverse Turning Direction Applicatio | |
| Functional Width (WF) | 0.441″ | Body Diameter (BD) | 2.4882″ |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 0.435″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
Product Features
| Family Description | Y-Axis Turning Tools with a Safety Lock clamping mechanism for negative inserts, intended for roughing and medium app. Three grooves on the pocket and a matching ridge at the insert bottom guarantee high stability at high feed rates. | Country of Origin | Israel |
Shipping Info
Package Weight
1708
