T35R45U01C0612X1.7563RN
Spiral Flute Tap; 0.4724″ × 1.75 mm - 14.51 ; 4.3307″ OAL ; 3 FL ; HSS-E ; Uncoated ; 6H ; Series T35
Additional Tariff Surcharge of 8 %

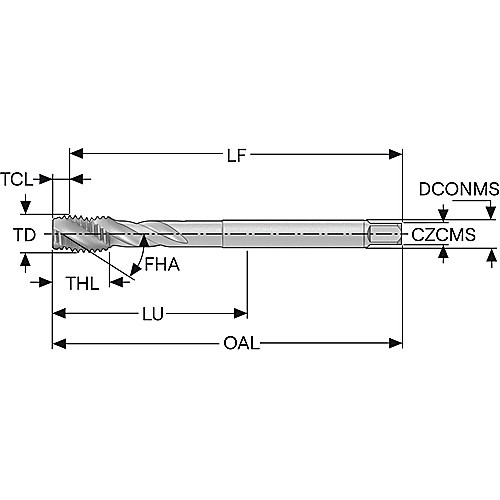

| Thread Diameter Size (TDZ) | M12 | Coating | Uncoated |
| Thread Pitch (TP) | 1.75 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 15 | Flute Type | Spiral |
| Thread Standard | Metric | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 4.3307″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 0.7087″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 3.2677″ | Square Size | 9.00 × 7 mm |
| Connection Diameter Machine Side (DCONMS) | 0.3543″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Tapping Prehole Diameter (Pre-hole) | 0.4016″ |
| Flute Helix Angle (FHA) | 45 | ToolTypeName | Spiral Flute |
| Cutting Length | 3.2677″ | Thread Form Type (THFT) | M |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | T35 |
| Cutting Edge Material | HSSE | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 6H | Drive Size (DRVS) | 9.00X7 mm |
| Tool Type | General Purpose | Thread Size | M12 × 1.75 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
