T35-R40S01C06-27X3-63R-P
Spiral Flute Tap; 0.9449″ × 3 mm - 8.47 ; 6.2992″ OAL ; 4 FL ; HSS-E-PM ; TiAlSiN ; 6H ; Series T35
Additional Tariff Surcharge of 8 %

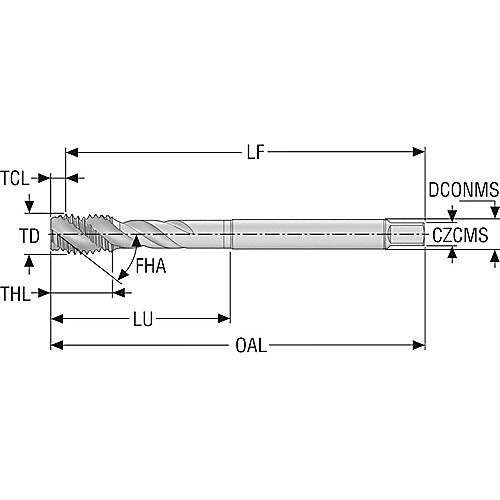

| Thread Diameter Size (TDZ) | M27 | Coating | TiAlSiN |
| Thread Pitch (TP) | 3 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 8 | Flute Type | Spiral |
| Thread Standard | Metric | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 6.2992″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 1.1811″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 3.8189″ | Square Size | 20.00 × 16 mm |
| Connection Diameter Machine Side (DCONMS) | 0.7874″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Tapping Prehole Diameter (Pre-hole) | 0.9449″ |
| Flute Helix Angle (FHA) | 40 | ToolTypeName | Spiral Flute |
| Cutting Length | 3.8189″ | Thread Form Type (THFT) | M |
| Applicable Material | | Steel | Stainless Steel | | Series/List # | T35 |
| Cutting Edge Material | HSSE-PM | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 6H | Drive Size (DRVS) | 20.00X16 mm |
| Tool Type | General Purpose | Thread Size | M27 × 3 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.78
