T34-R45C01C06-20X2.5-65R
Spiral Flute Tap; 0.7874″ × 2.50 mm - 10.16 ; 5.5118″ OAL ; 4 FL ; HSS-E-PM ; TiN | TiCN ; 6HX ; Series T34
Additional Tariff Surcharge of 8 %

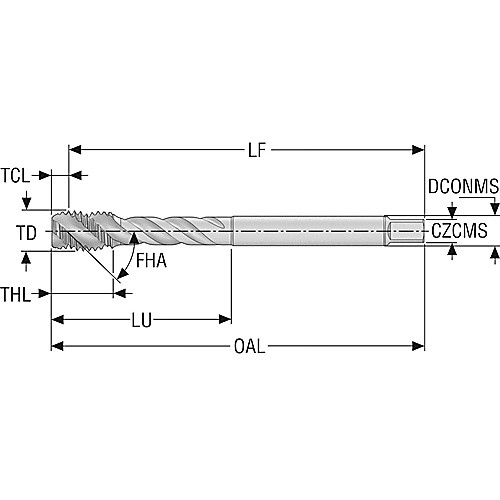

| Thread Diameter Size (TDZ) | M20 | Coating | TiN | TiCN |
| Thread Pitch (TP) | 2.5 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 10 | Flute Type | Spiral |
| Thread Standard | Metric | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 5.5118″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 0.9843″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 3.7402″ | Square Size | 16.00 × 12 mm |
| Connection Diameter Machine Side (DCONMS) | 0.6299″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Tapping Prehole Diameter (Pre-hole) | 0.689″ |
| Flute Helix Angle (FHA) | 45 | ToolTypeName | Spiral Flute |
| Cutting Length | 3.7402″ | Thread Form Type (THFT) | M |
| Applicable Material | | General Purpose | | Series/List # | T34 |
| Cutting Edge Material | HSSE-PM | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 6HX | Drive Size (DRVS) | 16.00X12 mm |
| Tool Type | General Purpose | Thread Size | M20 × 2.5 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.43
