T30-R40U02C05-33X2-63R
Spiral Flute Tap; 1.2992″ × 2 mm - 12.7 ; 6.2992″ OAL ; 4 FL ; HSS-E ; Uncoated ; 6H ; Series T30
Additional Tariff Surcharge of 8 %

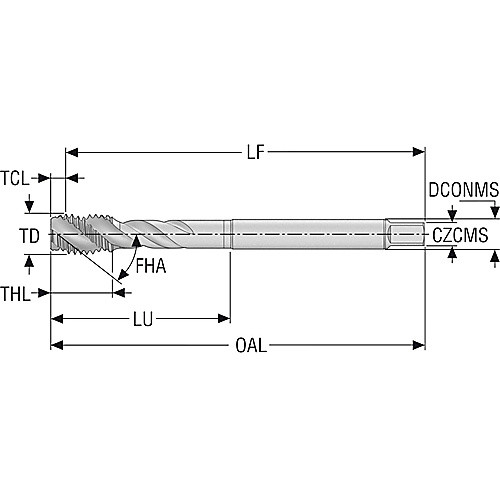

| Thread Diameter Size (TDZ) | M33 | Coating | Uncoated |
| Thread Pitch (TP) | 2 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 13 | Flute Type | Spiral |
| Thread Standard | Metric | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 6.2992″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 0.9449″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 3.6614″ | Square Size | 25.00 × 20 mm |
| Connection Diameter Machine Side (DCONMS) | 0.9843″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Tapping Prehole Diameter (Pre-hole) | 1.2205″ |
| Flute Helix Angle (FHA) | 40 | ToolTypeName | Spiral Flute |
| Cutting Length | 3.6614″ | Thread Form Type (THFT) | MF |
| Applicable Material | | General Purpose | | Series/List # | T30 |
| Cutting Edge Material | HSSE | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 6H | Drive Size (DRVS) | 25.00X20 mm |
| Tool Type | General Purpose | Thread Size | M33 × 2 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
1.16
