T30-SU32C09-3/8-19-R
Straight Flute Tap; 0.656″ × 1.34 mm - 19 ; 3.937″ OAL ; 4 FL ; HSS-E ; Uncoated ; NORMAL ; Series T30
Additional Tariff Surcharge of 8 %

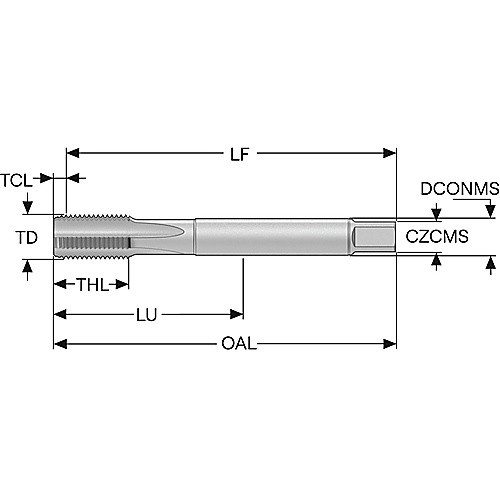

| Thread Diameter Size (TDZ) | 0.656″ | Chamfer | 2P-3P |
| Thread Pitch (TP) | 1.34 mm | Coating | Uncoated |
| Threads per Inch (TPI) | 19 | Drive Size (DRVS) | 12 × 9 mm |
| Thread Standard | BSPP | Tapping Prehole Diameter (Pre-hole) | 0.5906″ |
| Overall Length (OAL) | 3.937″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.8661″ | End Shape | Semi-Bottoming |
| Usable Length (LU) | 2.2835″ | Shank Type | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 0.4724″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Application | Through-Hole Threading | Blind Hole Threading | Square Size | 12 × 9 mm |
| Applicable Material | Steel | Non-Ferrous Metal | Measurement Type | Inch |
| Cutting Edge Material | HSS-E | Series/List # | T30 |
| Thread Tolerance Class (TCTR) | NORMAL | Thread Size | 3/8″ - 19 |
| Tool Type | Straight Flute Tap | Thread Form Type (THFT) | Rp |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.19
