T30-PX01B03-6X1-63R
Spiral Point Tap; 0.2362″ × 1 mm - 25.4 ; 3.2441″ OAL ; 3 FL ; HSS-E ; Vaporisiert ; 6H ; Series T30
Additional Tariff Surcharge of 8 %

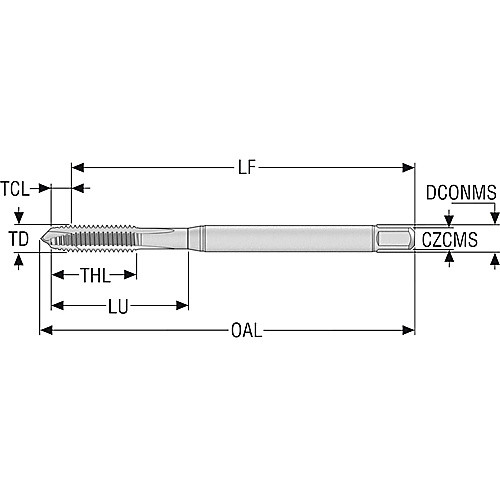

| Thread Standard | Metric | Application | Through-Hole Threading |
| Thread Size | M6 × 1 | Connection Diameter Machine Side (DCONMS) | 0.2362″ |
| Thread Diameter Size (TDZ) | 0.2362″ | Thread Cutting Part Length (THL) | 0.7087″ |
| Threads per Inch (TPI) | 25.4 | Tapping Prehole Diameter (Pre-hole) | 0.1969″ |
| Thread Pitch (TP) | 1 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 6H | End Shape | Plug |
| Usable Length (LU) | 1.1811″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 3.2441″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | Vaporisiert | Length Group | 3xD |
| Flute Count (NOF) | 3 | Square Size | 6.00 × 4.90 mm |
| Cutting Edge Material | HSS-E | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T30 |
| Applicable Material | Steel | Non-Ferrous Metal | Thread Form Type (THFT) | M |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.03
