T30-PU01B03-8X1.25-63R
Spiral Point Tap; 0.315″ × 1.25 mm - 20.32 ; 3.6732″ OAL ; 3 FL ; HSS-E ; Uncoated ; 6H ; Series T30
Additional Tariff Surcharge of 8 %

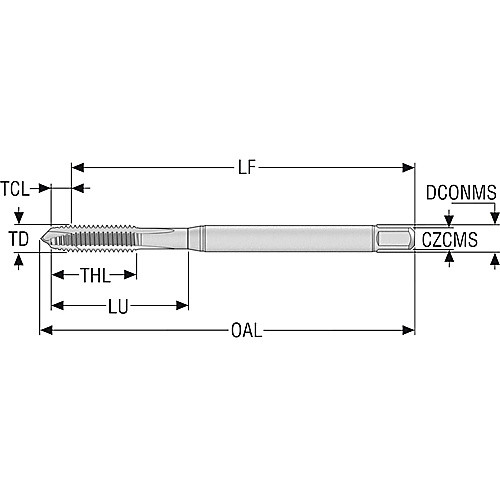

| Thread Standard | Metric | Application | Through-Hole Threading |
| Thread Size | M8 × 1.25 | Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Thread Diameter Size (TDZ) | 0.315″ | Thread Cutting Part Length (THL) | 0.7874″ |
| Threads per Inch (TPI) | 20.32 | Tapping Prehole Diameter (Pre-hole) | 0.2677″ |
| Thread Pitch (TP) | 1.25 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 6H | End Shape | Plug |
| Usable Length (LU) | 1.378″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 3.6732″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Length Group | 3xD |
| Flute Count (NOF) | 3 | Square Size | 8.00 × 6.20 mm |
| Cutting Edge Material | HSS-E | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T30 |
| Applicable Material | Steel | Non-Ferrous Metal | Thread Form Type (THFT) | M |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.06
