ST5541-.625D3S.0Z4 SIRA
SQ End Mill; 0.625″ Dia. × 1.875″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 4 FL ; 1.875″ LBS ; Solid Carbide ; SIRON-A ; Series ST5541

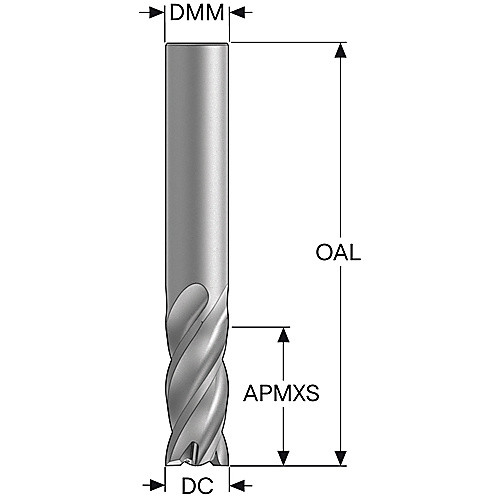

| Cutting Diameter (DC) | 0.625″ | Length Group | Regular |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Flute Type | Helical |
| Depth of Cut Maximum (APMX) | 1.875″ | Coolant Supply Property (CSP) | No |
| Overall Length (OAL) | 4″ | Shank Standard | ANSI B94.19 |
| Cutting Edge Material | Solid Carbide | Body Material | Solid Carbide |
| Coating | SIRON-A | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 | Series/List # | ST5541 |
| Shank Type | Cylindrical | Cutting Direction (HAND) | Right Hand |
| End Shape | Square End | Single / Double End | Single End |
| Usable Length (LU) | 1.875″ | Center Cutting | Yes |
| Applicable Material | | Steel | Cast Iron | | Tool Cutting Edge Angle (KAPR) | 90 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Cutting Diameter Tolerance | -0.0020/" |
| Tool Type | End Mill | Shank Diameter Tolerance (TCDMM) | ANSI B94.19 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.52
