ST5341-080D2B.3Z4 SIRA

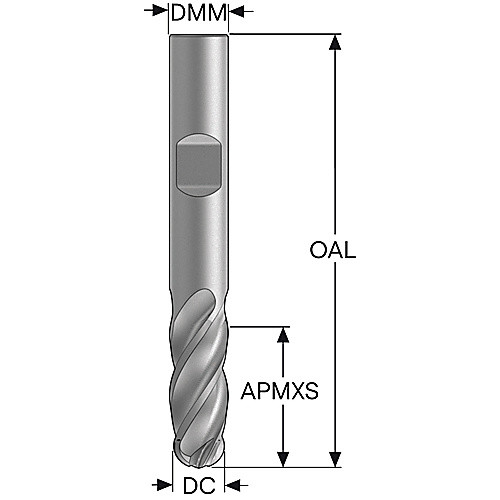

BN End Mill; 8 mm Dia. × 18 mm LOC × 8 mm Shank Dia. × 64 mm OAL ; 4 FL ; Solid Carbide ; SIRON-A ; Series ST5341
| Cutting Diameter (DC) | 8 mm | Length Group | Short |
| Connection Diameter Machine Side (DCONMS) | 8 mm | End Shape | Ball |
| Depth of Cut Maximum (APMX) | 18 mm | Flute Type | Helical |
| Overall Length (OAL) | 64 mm | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Solid Carbide | Shank Standard | h5 |
| Coating | SIRON-A | Body Material | Solid Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 8 mm |
| Flute Helix Angle (FHA) | 30 | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | ST5341 |
| Usable Length (LU) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Cast Iron | Center Cutting | Yes |
| Corner Radius (RE) | 4 mm | Single / Double End | Single End |
| Number of Teeth | 4 | Tool Cutting Edge Angle (KAPR) | 90 |
| Tool Type | Ballnose Endmill |
Product Features
| Country of Origin | USA |
