T32-PN09B93-4-48-21R
Spiral Point Tap; 0.112″ × 0.53 mm - 48 ; 2.252″ OAL ; 3 FL ; HSS-E-PM ; TiAlN | TiN ; 2B ; Series T32
Additional Tariff Surcharge of 8 %

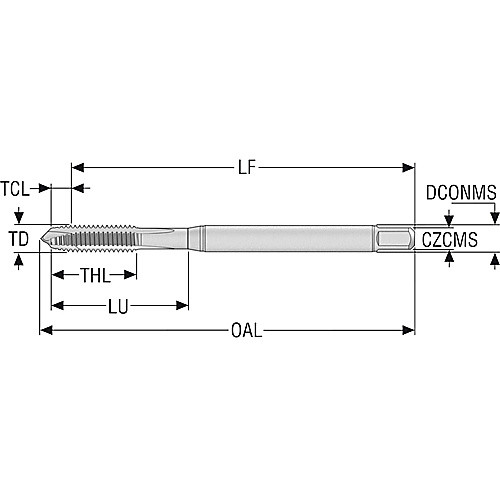

| Thread Standard | UNF | Application | Through-Hole Threading |
| Thread Size | #4 - 48 | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | 0.112″ | Thread Cutting Part Length (THL) | 0.3937″ |
| Threads per Inch (TPI) | 48 | Tapping Prehole Diameter (Pre-hole) | 0.0945″ |
| Thread Pitch (TP) | 0.53 mm | Flute Type | Spiral Point |
| Thread Tolerance Class (TCTR) | 2B | End Shape | Plug |
| Usable Length (LU) | 0.7181″ | Shank Type | Cylindrical |
| Overall Length (OAL) | 2.252″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P - 5P | Coolant Supply Property (CSP) | External |
| Coating | TiAlN | TiN | Length Group | 3xD |
| Flute Count (NOF) | 3 | Square Size | 3.581 × 2.79 mm |
| Cutting Edge Material | HSS-E-PM | Measurement Type | Inch |
| Tool Type | General Purpose | Series/List # | T32 |
| Applicable Material | Stainless Steel | Steel | Cast Iron | Non-Ferrous Metal | Thread Form Type (THFT) | UNF |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.01
