T34-R45H01C96-18X2.5-65R
Spiral Flute Tap; 0.7087″ × 2.50 mm - 10.16 ; 4.9213″ OAL ; 4 FL ; HSS-E-PM ; TiAlN | WC/C ; 6HX ; Series T34
Additional Tariff Surcharge of 8 %

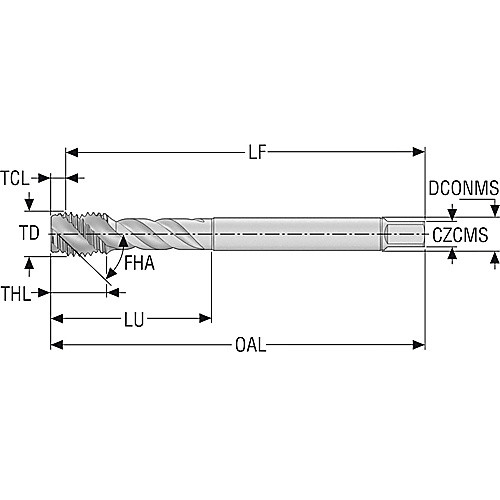

| Thread Diameter Size (TDZ) | M18 | Coating | TiAlN | WC/C |
| Thread Pitch (TP) | 2.5 mm | Shank Type | Cylindrical |
| Threads per Inch (TPI) | 10 | Flute Type | Spiral |
| Thread Standard | Metric | End Shape | Semi-Bottoming |
| Overall Length (OAL) | 4.9213″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 0.9843″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 3.1102″ | Square Size | 13.767 × 10.31 mm |
| Connection Diameter Machine Side (DCONMS) | 0.542″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Tapping Prehole Diameter (Pre-hole) | 0.6102″ |
| Flute Helix Angle (FHA) | 45 | ToolTypeName | Spiral Flute |
| Cutting Length | 3.1102″ | Thread Form Type (THFT) | M |
| Applicable Material | | General Purpose | | Series/List # | T34 |
| Cutting Edge Material | HSSE-PM | Application | Blind Hole Threading |
| Thread Tolerance Class (TCTR) | 6HX | Drive Size (DRVS) | 13.767x10.31 mm |
| Tool Type | General Purpose | Thread Size | M18 × 2.5 |
| Chamfer | 2P-3P |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.28
